Merknaam:	Sihovision
Modelnummer:	SC17
Moq:	1 stuk
Prijs:	Onderhandelbaar
Verpakking:	1pcs/ctn 53×17×45cm 8kg
Betalingsvoorwaarden:	T/T, PayPal, L/C, D/A, D/P, Western Union, MoneyGram

Detailinformatie

Productomschrijving

Detailinformatie

Plaats van herkomst:

Shenzhen, China

Certificering:

CE,FCC,RoHS

Productnaam:

17 inch ingebedde paneel-pc

CPU:

Core i5-7200U

IP -kwaliteit:

voorpaneel IP65

Helderheid:

1000cd/m2

Aanraken:

Geprojecteerde capacitieve aanraking (maximaal 10 punten)

Oplossing:

1280*1024

Beeldverhouding:

5:4

kijkhoek:

85 °/85 °/85 °/85 ° (r/l/u/d)

Markeren:

17 inch industrial panel PC

sunlight readable touch panel PC

custom industrial AIO PC

Productomschrijving

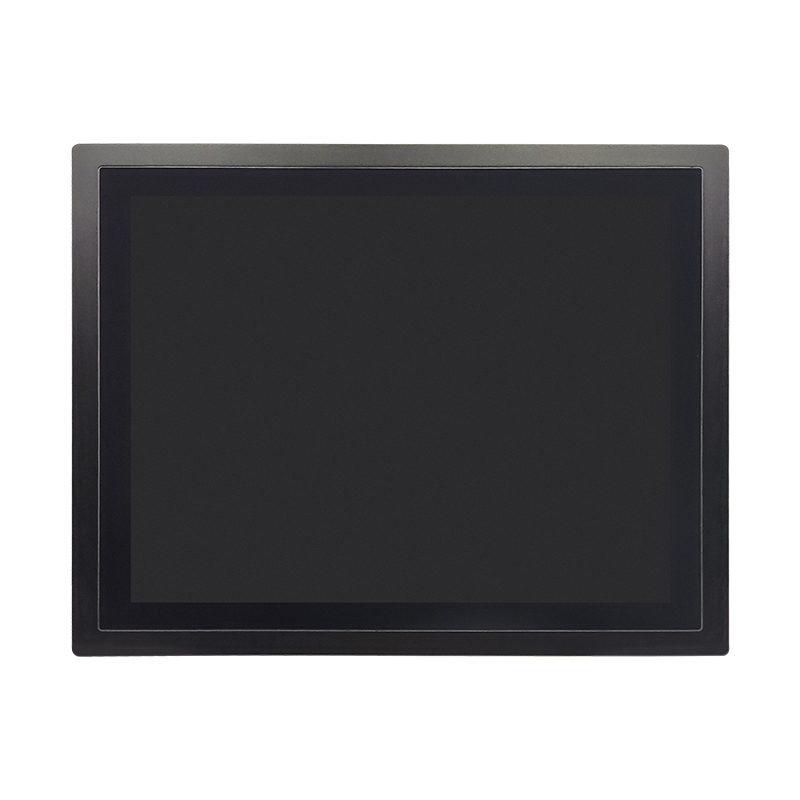

17 Inch Custom Industrial Touch AIO Industrial Panel PC 1000 nits sunlight readable

Display Quality & Durability

Screen Performance:

Industrial LCD with 1000 nit brightness (excellent sunlight readability)
PWM-based software brightness adjustment
10-point capacitive multi-touch capability

Protection & Durability:

Frame: Aluminum alloy with sandblasting and anodization finish, UV-resistant and color-stable
Glass: 1.8mm chemically strengthened tempered glass rated at 7H hardness
Surface: Anti-glare (AG) treatment to reduce reflections
Waterproofing: IP65-rated front shell (dust-tight, protected against water jets)

Reliability Features

Touch Controller: EETI solution that maintains functionality even with water droplets on screen
Operating Temperature: Wide range from -20°C to 70°C (-4°F to 158°F)
Duty Cycle: 24/7 continuous operation capability
Components: Industrial-grade for extended lifespan

Specification

Model:SC17
PC
CPU	Intel® Core i5-7200U, Base 2.4 Ghz, Turbo 3.0 Ghz, Fanless
Chipset	Kabylake
Memory	8G DDR4
Storage Capacity	256G SSD
Graphics	Intel(R) HD Graphics 620(128M)
Audio	High Definition AudioDevice Intel(R) Monitor Audio
Network	Realtek PCIe GbE Family Controller
Wireless Network	MC-AC7265 IEEE 802.11a/b/g/n/ac
Expansion Slots	1xMiniPCIe, WIFI,Bluetooth /4G Expansion Module
Preinstalled OS	Window10 IOT Ent 2019 LTSC
Operation System	Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.
I/O
USB	4*USB3.0
COM	4* COM RS232
LAN	2* RJ45
Video Outputs	1VGA, 1HDMI
Audio	1* 3.5mm Line-out, 1* 3.5mm Line-in (2 x 2W Speakers)
Power input	1* 12V DC jack, 1* 2PIN aviation lockable DC jack
Other	1* Power on/off button, 1* WIFI antenna jack male
LCD panel
Screen diagonal	17"
Display active area	337.92(W)x270.336(H) mm / 13.304x10.643 in
Resolution	1280*1024
Aspect ratio	5:4
Brightness (cd/m²)	1000 nits sunlight readable
Brightness control	PWM Brightness Adjustment
Contrast ratio	800:1
View angle	80°/80°/70°/70° (R/L/U/D)
Support Color	16.7M colors
Backlight	WLED, 50K hours
Touch panel
Touchscreen Type	Projected Capacitive Touch (up to 10 points )
Surface Hardness	7H
Surface treatment	N/A
Luminousness	≥90%
Touch controller IC	EETI 80
Available touch drivers	Windows, Linux, Android, Mac, etc
Touch bonding	Optical bonding
Touch optional	Resisive touch, non touch, IR touch optional
Power Supply
Working voltage	DC 12V
Power consumption	30W
Power adapter	AC 100 ~ 240V input and DC +12V@5A MAX output, 60W
Enclosure
Material	Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing+Aluminium alloy cooling fin
Finish	Front bezel, cooling fin: sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated
Color	Black
VESA mounting	VESA mount 7575/100100mm, Panel mount
IP grade	Front IP65 waterproof
Cooling system	Passive - Fanless
Operating Environment
Temperature Range	operating: -20 °C(-4℉) to 70°C(158℉), storage: -30 °C(-22℉) to 80°C(176℉)
Relative humidity	Up to 100% at all relevant temperatures, non-condensing
Vibration	GB/T 2423.10-2019
Shock	GB2423.5
EMC	Class B
Packing Details
Product weight	Net weight 5.5kg Gross weight 7kg
Product Dimension	411.6×342.6×79mm
Packing info	1pcs/ctn 53×17×45cm 7.5kg 2pcs/ctn 53×32×45cm 15kg
Accessories	Power cable, Power supply, Embedded mount screws, Antenna
Other
Warranty	1 year warranty
Certificate	CE, FCC, RoHS
